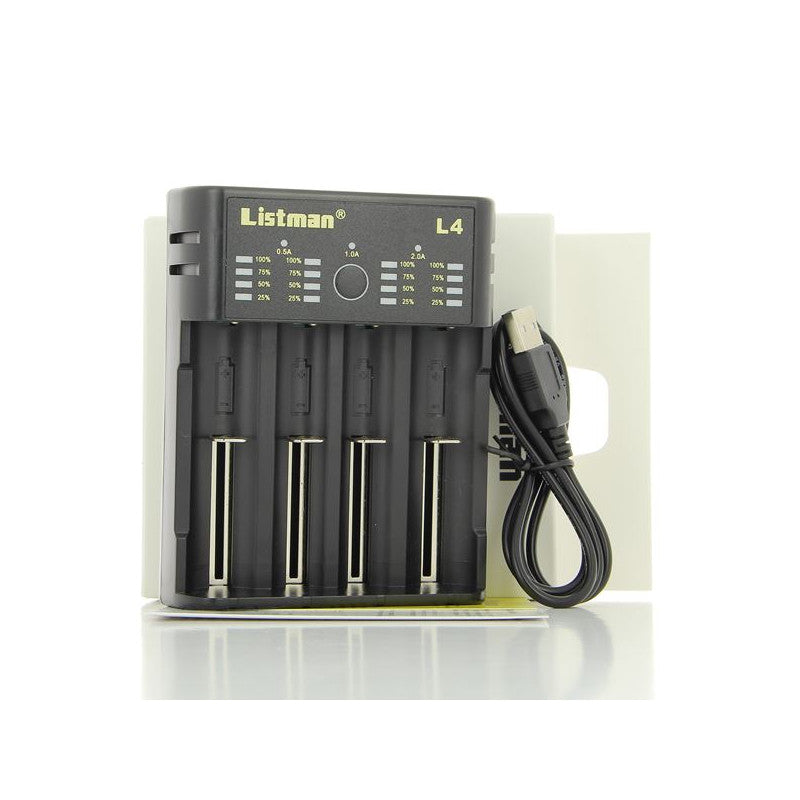

Listman L4 2A Charger
Listman L4 2A Charger
New Listman L4 2A Fast Charger
Brand Name: LISTMAN
Socket Standard: USB
Model Number: L4
Use:charge 3.7V/3.6V rechargeable battery
Place of Origin: Guangdong, China (Mainland)
Product name:Listman L4 charger
Certificate: CE RoHS KC
Compatible battery:3.7V 18650 26650 26500 20700 21700 26700 25500 18700 18500 18490 18350 17650 16650 16340(RCR123)14650 14500 NI-MH/Ni-Cd:AA. AAA. A .SC.C .F6
1. Charging mode By pressing the current switching function on the right side of the product, it can be cycled in 0.5A/1A/2A three current modes to meet the needs of charging 3.7V lithium battery and 12V Ni-MH cylindrical battery of different specifications. This charger is suitable for10440/14500/14650/16340/16650/17650/17670/18350 /18490/18500/18650/18700/22650/20700/21700/22700/25500/26650/26700 AAA, AA, A, C, SC, F6 models of batteries.
2. Circuit anti-reverse function
When the charger is in the charging or standby state, if the positive and negative terminals of each channel are short-circuited, cross-short, the battery itself is short-circuited, and the positive and negative terminals of the battery are reversed, the product protection function is activated, and the charger will not be damaged.
3. Low voltage activation
When the charger is in standby, the low voltage battery (battery voltage ≤ 2.9V) is correctly connected to the charging channel, and the trickle charge function of the charger is activated to automatically activate the low voltage battery.
Due to factors such as the number of times of over-discharge of the low-voltage battery, capacity, degree of over-discharge, and duration of low-voltage, the activation time varies greatly. After the battery is activated, charge it according to the charging process.
4. Overcharge protection and automatic detection of charging function
Connect the battery to be charged. If the battery voltage is <4.18V, the charger starts the charging function and charges the rechargeable battery. When the battery is full, the charger activates the overcharge protection function and automatically stops charging.
If the battery is not removed after a long period of time, the charger will consume a certain amount of battery power. When the battery voltage is lower than 4.0V, the charger restarts the charging function.
